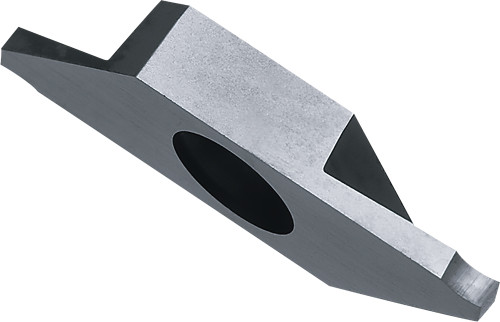

ANSI Designation
TKF16L150SPR1725
Insert Thickness (Metric)
9.50
Insert Holding Method
Screw
Secondary Workpiece Material
Stainless Steel
Machining Operations
Cut-Off, Small Parts Machining
ISO Designation
TKF16L150-S
Maximum Depth of Cut (Decimal)
0.3150
Maximum Depth of Cut (Metric)
8.00
Cutting Width (Decimal)
0.0591
Cutting Width (Metric)
1.50
Cutting Width Minimum (Decimal)
0.0591
Cutting Width Minimum (Metric)
1.50
Cutting Width Maximum (Decimal)
0.0591
Cutting Width Maximum (Metric)
1.50
Corner Radius (Metric)
0.05
Number of Cutting Edges
2
Corner Radius (Decimal)
0.0020
Insert Shape
Parallelogram
Coating/Finish
MEGACOAT NANO PLUS
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
Insert Thickness (Decimal)
0.3740
