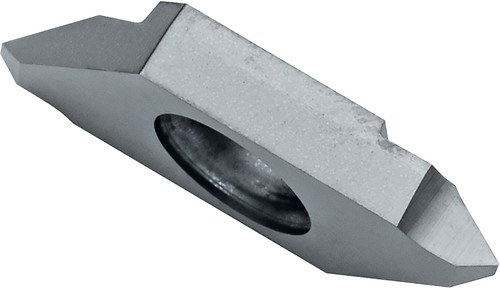

Kyocera TKFT 12LA6000 PR1725 Grade PVD Carbide, Indexable Threading Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM40175
$71.13
Kyocera TKFT 12LA6000 PR1725 Grade PVD Carbide, External, 60 Degree Partial Profile, Right-Hand Threading Insert for Metric (M), Unified (UN) Threads

Specifications

Series
KTKF
Unit of Measure
Imperial
Cutting Direction
Left
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Grade
PR1725
Thickness
0.34 Inch
Style
TKFT
Application
External Threading
Thread Standard
Metric (M)|Unified (UN)
Insert Holding Method
Screw
Thread Type
External
Size
12
Old Material Number
8865348
ANSI Part Number
TKFT12LA6000PR1725
ISO Part Number
TKFT12LA6000
Cutting Width (Decimal)
0.10
Cutting Width (Metric)
2.50
Cutting Width Minimum (Decimal)
0.10
Cutting Width Minimum (Metric)
2.50
Cutting Width Maximum (Decimal)
0.10
Cutting Width Maximum (Metric)
2.50
Number of Cutting Edges
2
Usage Classification
Continuous
Thread Profile Type
60 Degree Partial Profile
Thread Pitch (TPI)
UN: 64-48
Thread Pitch (mm)
M: 0.20-0.60
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KTKF_Series.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
