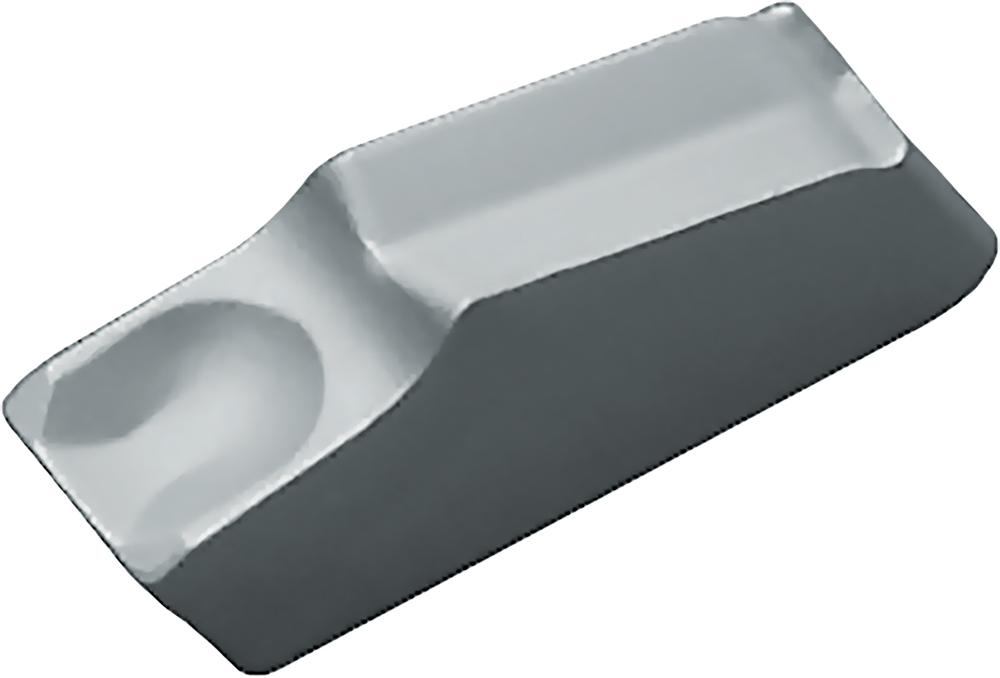

Kyocera TKN 16P KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE15010
$28.75
Kyocera TKN 16P KW10 Grade Uncoated Carbide, 1.60mm Cutting Width, Neutral Cut-Off Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals

Specifications

Series
KTKC
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Primary Workpiece Material
(N) Non-Ferrous Materials
Cutting Width
1.60 mm
Application
Cut-Off
Insert Holding Method
Self-Clamp
Old Material Number
8814284
ANSI Part Number
TKN16PKW10
ISO Part Number
TKN1.6-P
Rake
Positive
Material Group / Grade
KW10
Tool Style
TKN
Cutting Width (Decimal)
0.06
Cutting Width (Metric)
1.60
Cutting Width Minimum (Decimal)
0.06
Cutting Width Minimum (Metric)
1.60
Cutting Width Maximum (Decimal)
0.06
Cutting Width Maximum (Metric)
1.60
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Insert Size
16
Corner Radius (Decimal)
0.01
Chipbreaker
P
Coating Process
Uncoated
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
Kyocera TKN 16P KW10 Grade Uncoated Carbide, Indexable Cut-Off Insert
$28.75
