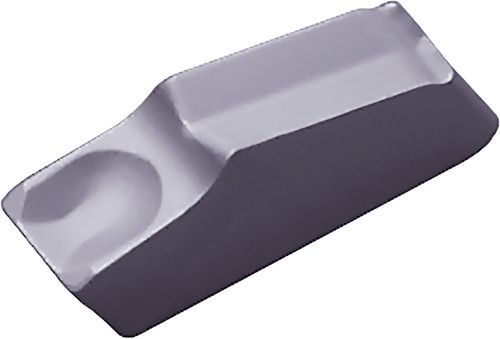

Kyocera TKN 24 PR930 Grade PVD Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT15100
$36.89
Kyocera TKN 24 PR930 Grade PVD Carbide, 2.40mm Cutting Width, Neutral Cut-Off Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KTKC
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Primary Workpiece Material
(P) Steel
Cutting Width
2.40 mm
Application
Cut-Off
Insert Holding Method
Self-Clamp
Old Material Number
8802947
ANSI Part Number
TKN24PR930
ISO Part Number
TKN2.4
Rake
Positive
Material Group / Grade
PR930
Tool Style
TKN
Cutting Width (Decimal)
0.09
Cutting Width (Metric)
2.40
Cutting Width Minimum (Decimal)
0.09
Cutting Width Minimum (Metric)
2.40
Cutting Width Maximum (Decimal)
0.09
Cutting Width Maximum (Metric)
2.40
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Insert Size
24
Corner Radius (Decimal)
0.01
Coating Process
PVD
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous
Pack quantity
10
Kyocera TKN 24 PR930 Grade PVD Carbide, Indexable Cut-Off Insert
$36.89
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
