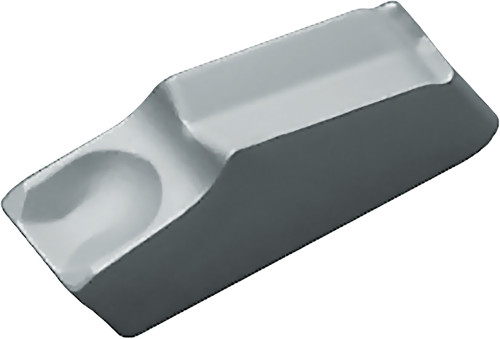

Kyocera TKN 4 TN90 Grade Uncoated Cermet, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSO15200
$27.39
Kyocera TKN 4 TN90 Grade Uncoated Cermet, 4.10mm Cutting Width, Neutral Cut-Off Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KTKC
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Cermet
Primary Workpiece Material
(P) Steel
Cutting Width
4.10 mm
Application
Cut-Off
Insert Holding Method
Self-Clamp
Old Material Number
8802964
ANSI Part Number
TKN4TN90
ISO Part Number
TKN4
Rake
Positive
Material Group / Grade
TN90
Tool Style
TKN
Cutting Width (Decimal)
0.16
Cutting Width (Metric)
4.10
Cutting Width Minimum (Decimal)
0.16
Cutting Width Minimum (Metric)
4.10
Cutting Width Maximum (Decimal)
0.16
Cutting Width Maximum (Metric)
4.10
Corner Radius (Metric)
0.30
Number of Cutting Edges
1
Insert Size
4
Corner Radius (Decimal)
0.01
Coating Process
Uncoated
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous
Pack quantity
10
