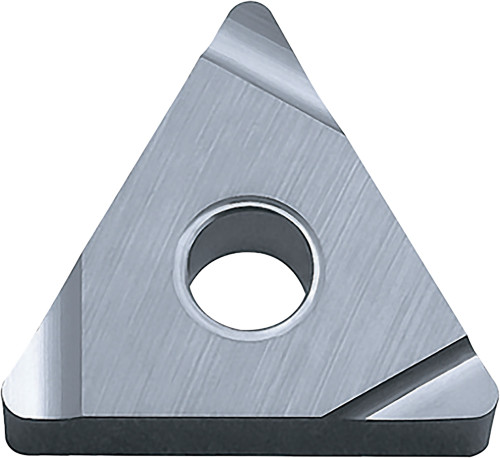

Kyocera Turning Insert TNEG331LSSF TN610: TSS05902

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS05902
$20.20

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, triangle shape, negative rake, 6 cutting edges, finishing cutting range, screw or clamp insert holding, left hand. Cermet, uncoated. Manufacturer part number TSS05902.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TNEG331LSSFTN610
Insert Style
TNEG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
331
Insert Grade
TN610
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
SSF
ISO Designation
TNEG160404L-SSF
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
