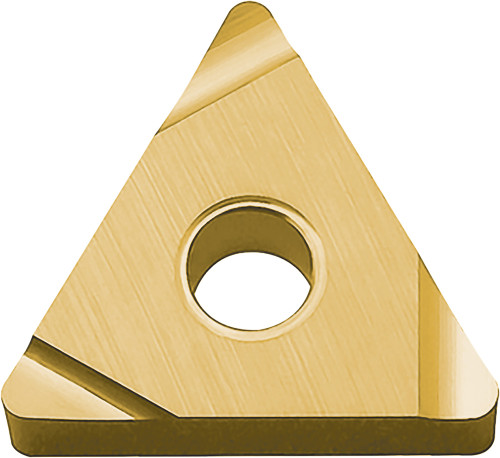

Kyocera TNEG 331RSSF PV730 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLP00289
$25.41
Kyocera TNEG 331RSSF PV730 Grade PVD Cermet, 0 Degree, Triangle, Negative Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
3/16 Inch
Style
TNEG
Application
Boring, Chamfering, Copying, External Turning, Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
331
Old Material Number
8866049
ANSI Part Number
TNEG331RSSFPV730
ISO Part Number
TNEG160404R-SSF
Rake
Negative
Material Group / Grade
PV730
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
SSF
Cutting Range
Finishing-Medium
Usage Classification
Heavy Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
