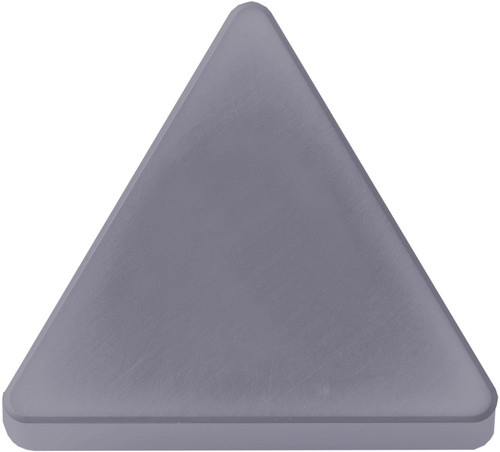

Kyocera TNG 222T00220 PT600M Grade Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TCV06807
$19.29
Kyocera TNG 222T00220 PT600M Grade Ceramic, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
1/32 Inch
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TNG
Application
Copying, External Turning, Facing
Shape
60 Degree Triangle
Insert Holding Method
Clamp
Size
222
Old Material Number
8828037
ANSI Part Number
TNG222T00220PT600M
ISO Part Number
TNGN110308T00520
Rake
Negative
Material Group / Grade
PT600M
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Thickness (Metric)
3.18
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
