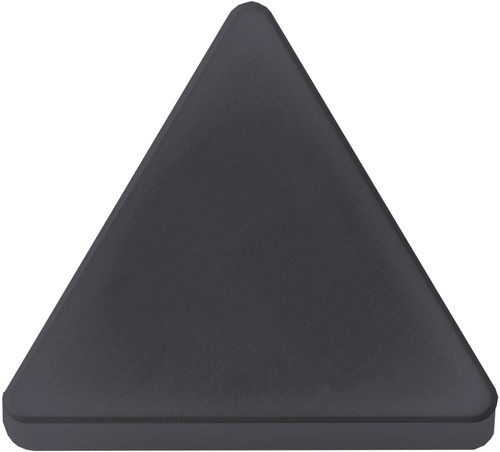

Kyocera TNG 332T00825 KS6015 Grade Ceramic, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TTB00620
$39.11
Kyocera TNG 332T00825 KS6015 Grade Ceramic, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Ceramic
Coating/Finish
Uncoated
Primary Workpiece Material
(K) Gray Cast Iron
Corner Radius
1/32 Inch
Included Angle
60 degrees
Thickness
3/16 Inch
Style
TNG
Application
Copying, External Turning, Facing
Shape
60 Degree Triangle
Insert Holding Method
Clamp
Size
332
Old Material Number
8863031
ANSI Part Number
TNG332T00825KS6015
ISO Part Number
TNGN160408T02025
Rake
Negative
Material Group / Grade
KS6015
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Thickness (Metric)
4.76
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/KS6015_KS6050_CS7050.pdf
Kyocera TNG 332T00825 KS6015 Grade Ceramic, Indexable Turning Insert
$39.11
