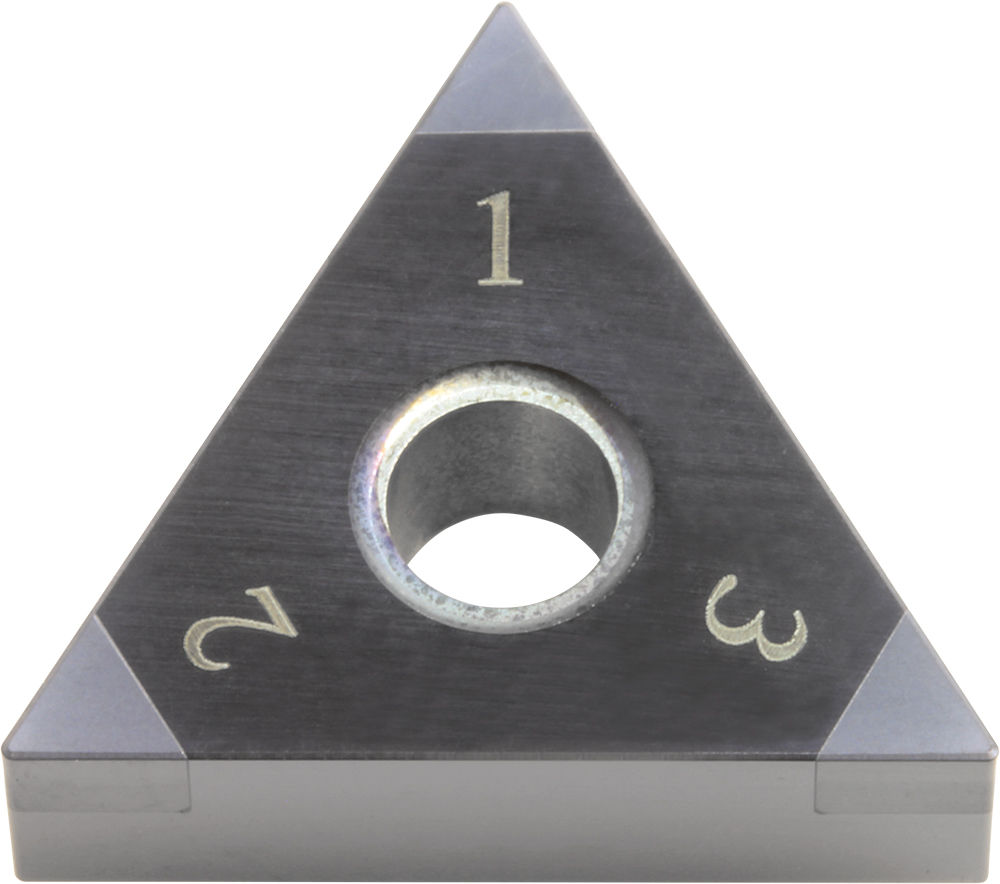

Kyocera Turning Insert TNGA332S00525ME KBN05M: TBN04357

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBN04357
$124.69

Kyocera Turning Insert TNGA332S00525ME KBN05M, manufacturer part number TBN04357.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8832226; Rake: Negative; Number of Cutting Edges: 3; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 332; Hand Direction: Neutral; Insert Style: TNGA; ANSI Designation: TNGA332S00525MEKBN05M; ISO Designation: TNGA160408S01225ME; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: KBN05M; Workpiece Material: Hardened Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TNGA332S00525MEKBN05M
Insert Style
TNGA
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
332
Old Material Number
8832226
Insert Grade
KBN05M
Workpiece Material
Hardened Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Coating Process
PVD
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
TNGA160408S01225ME
IC Size (Fractional)
3/8
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/KBN05M_W.pdf
