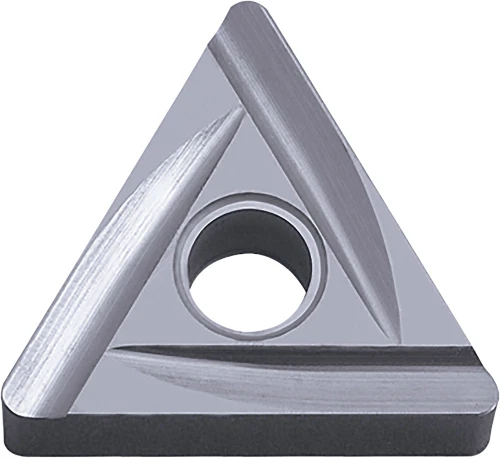

Kyocera Turning Insert TNGG331LC PR930: TKT03184

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT03184
$32.62

Kyocera Turning Insert TNGG331LC PR930, manufacturer part number TKT03184.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8809722; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Medium-Roughing; Usage Classification: Continuous to Light Interruption; Insert Size: 331; Hand Direction: Left; Insert Style: TNGG; ANSI Designation: TNGG331LCPR930; Chip Breaker Type: C; ISO Designation: TNGG160404L-C; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing, Up Facing; Insert Grade: PR930; Workpiece Material: Steel, Stainless Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiCN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
TiCN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TNGG331LCPR930
Insert Style
TNGG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing, Up Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
331
Old Material Number
8809722
Insert Grade
PR930
Workpiece Material
Steel, Stainless Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Coating Process
PVD
IC Size (Fractional)
3/8
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
C
ISO Designation
TNGG160404L-C
Pack quantity
10
