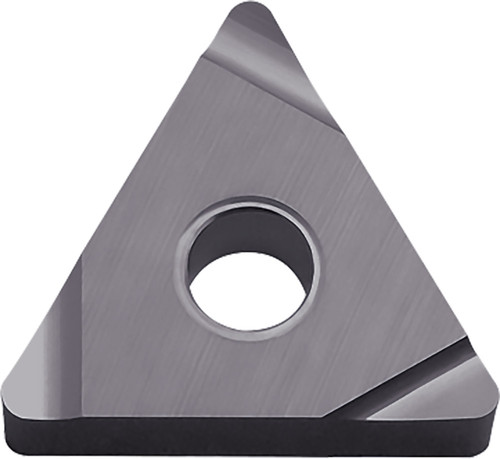

Kyocera TNGG 331LS PV7005 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJA05982
$27.07
Kyocera TNGG 331LS PV7005 Grade PVD Cermet, 0 Degree, Triangle, Negative Rake Angle, Left-Hand Turning Insert for Continuous and Finishing in (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
3/16 Inch
Style
TNGG
Application
Boring, Chamfering, Copying, External Turning, Facing, Up Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
331
Old Material Number
8837323
ANSI Part Number
TNGG331LSPV7005
ISO Part Number
TNGG160404L-S
Rake
Negative
Material Group / Grade
PV7005
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
S
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
