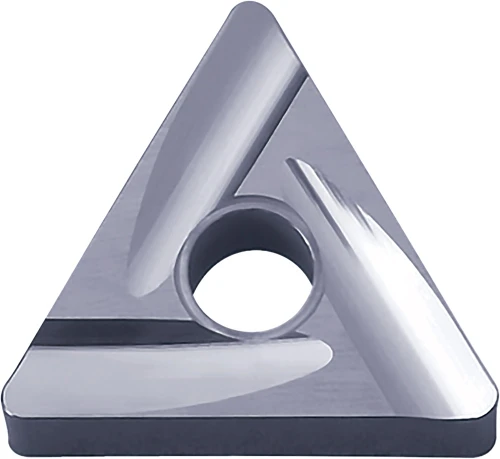

Kyocera Turning Insert TNGG331R25R PR1535: TLC40084

Kyocera Turning Insert TNGG331R25R PR1535, manufacturer part number TLC40084.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8866480; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Medium-Roughing; Usage Classification: Continuous to Light Interruption; Insert Size: 331; Hand Direction: Right; Insert Style: TNGG; ANSI Designation: TNGG331R25RPR1535; Chip Breaker Type: 25R; ISO Designation: TNGG160404R-25R; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing, Up Facing; Insert Grade: PR1535; Workpiece Material: Stainless Steel, High-Temp Alloy; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO. Series: ISOI. Unit of measure: Inch.
