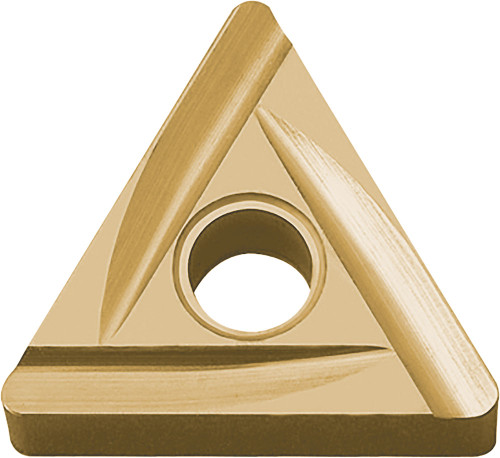

Kyocera Turning Insert TNGG332RB PV720: TLD05965

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD05965
$25.77

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, triangle shape, negative rake, 6 cutting edges, finishing-medium cutting range, screw or clamp insert holding, right hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLD05965.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
TiCN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TNGG332RBPV720
Insert Style
TNGG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing, Up Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
332
Insert Grade
PV720
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Coating Process
PVD
IC Size (Fractional)
3/8
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
B
ISO Designation
TNGG160408R-B
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
