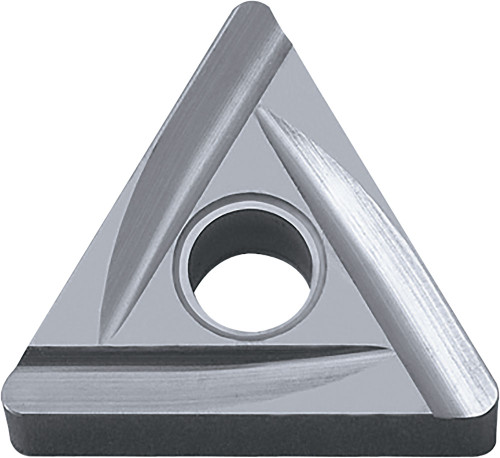

Kyocera Turning Insert TNGG333RC TN610: TSS05975

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS05975
$21.46

Kyocera Turning Insert TNGG333RC TN610, manufacturer part number TSS05975.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8848014; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Medium-Roughing; Usage Classification: Continuous; Insert Size: 333; Hand Direction: Right; Insert Style: TNGG; ANSI Designation: TNGG333RCTN610; Chip Breaker Type: C; ISO Designation: TNGG160412R-C; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing, Up Facing; Insert Grade: TN610; Workpiece Material: Steel; Insert Shape: Triangle.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Right
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
3/64
Included Angle
60
ANSI Designation
TNGG333RCTN610
Insert Style
TNGG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing, Up Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
333
Old Material Number
8848014
Insert Grade
TN610
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
1.20
Number of Cutting Edges
6
IC Size (Fractional)
3/8
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
C
ISO Designation
TNGG160412R-C
Pack quantity
10
