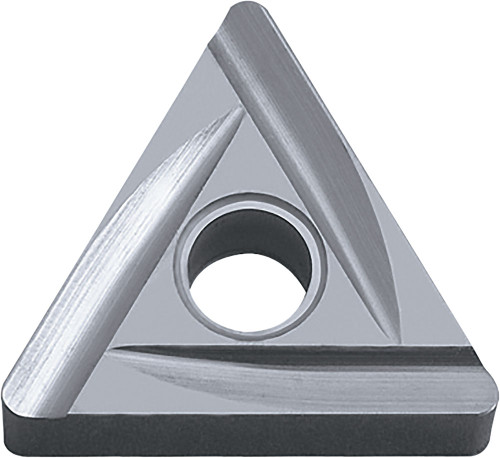

Kyocera TNGG 431LC TN60 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ01956
$30.13
Kyocera TNGG 431LC TN60 Grade Uncoated Cermet, 0 Degree, Triangle, Negative Rake Angle, Left-Hand Turning Insert for Continuous and Medium-Roughing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
60 degrees
Thickness
3/16 Inch
Style
TNGG
Application
Boring, Chamfering, Copying, External Turning, Facing, Up Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
431
Old Material Number
8837300
ANSI Part Number
TNGG431LCTN60
ISO Part Number
TNGG220404L-C
Rake
Negative
Material Group / Grade
TN60
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
C
Cutting Range
Medium-Roughing
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
