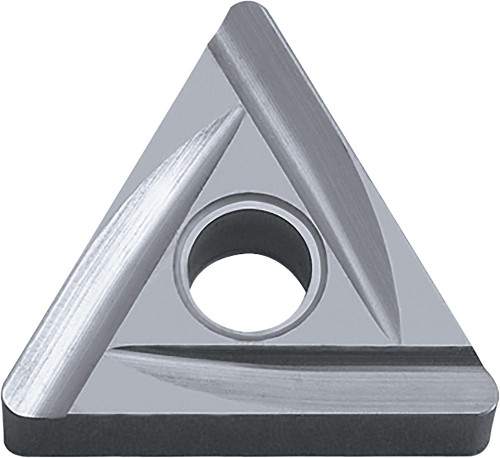

Kyocera Turning Insert TNGG432LC TN60: TSJ01960

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ01960
$30.13

Kyocera Turning Insert TNGG432LC TN60, manufacturer part number TSJ01960.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8850171; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Medium-Roughing; Usage Classification: Continuous; Insert Size: 432; Hand Direction: Left; Insert Style: TNGG; ANSI Designation: TNGG432LCTN60; Chip Breaker Type: C; ISO Designation: TNGG220408L-C; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing, Up Facing; Insert Grade: TN60; Workpiece Material: Steel; Insert Shape: Triangle.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TNGG432LCTN60
Insert Style
TNGG
Insert Thickness (Metric)
4.76
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
432
Old Material Number
8850171
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing, Up Facing
Insert Grade
TN60
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Workpiece Material
Steel
ISO Designation
TNGG220408L-C
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Chip Breaker Type
C
Pack quantity
10
