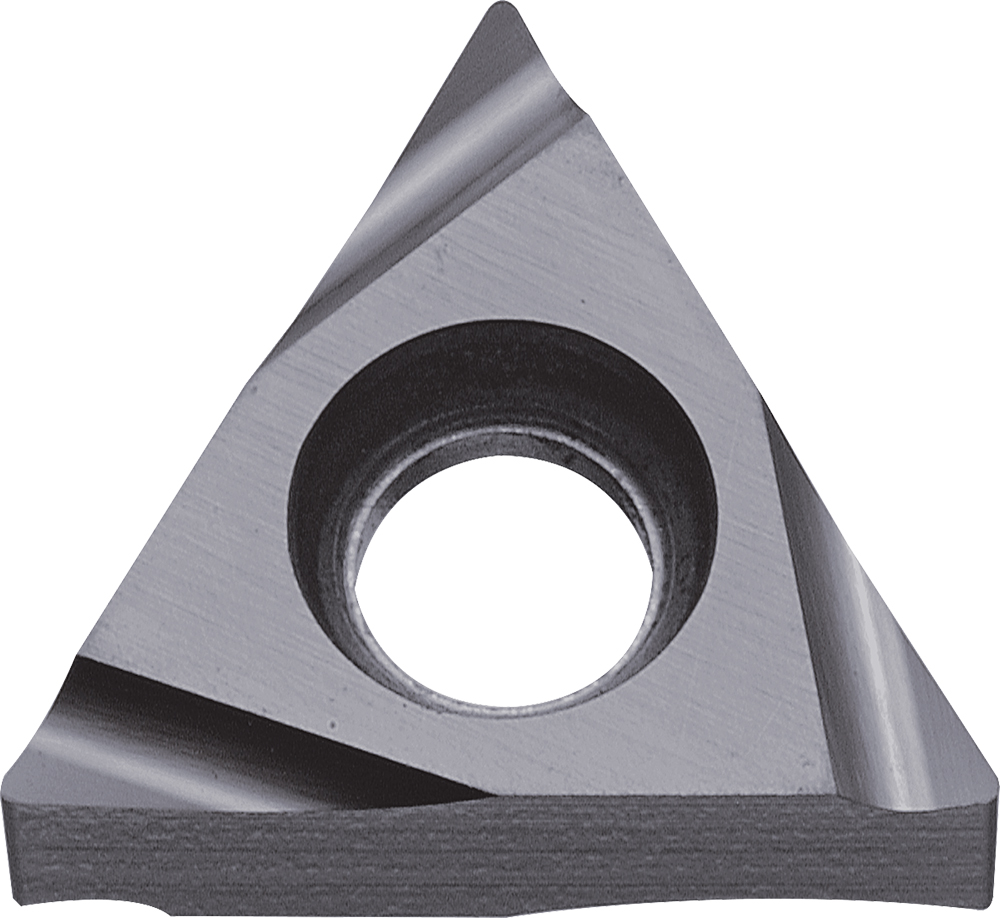

Kyocera TNGU 18205MFRU PR1225 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE06074
$36.65
Kyocera TNGU 18205MFRU PR1225 Grade PVD Carbide, 0 Degree, Triangle, Negative Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing in (M) Stainless Steel and (P) Carbon/Alloy Steel

Specifications

Series
DSSS
Unit of Measure
Fractional
Cutting Direction
Right-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TNGU
Application
External Turning, Up Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
18205
Old Material Number
8831968
ANSI Part Number
TNGU18205MFRUPR1225
ISO Part Number
TNGU090302MFR-U
Rake
Negative
Material Group / Grade
PR1225
Corner Radius (Metric)
0.20
Number of Cutting Edges
6
Thickness (Metric)
3.18
Chipbreaker
U
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
5.56
Inscribed Circle
7/32 Inch
Pack quantity
10
Kyocera TNGU 18205MFRU PR1225 Grade PVD Carbide, Indexable Turning Insert
$36.65
