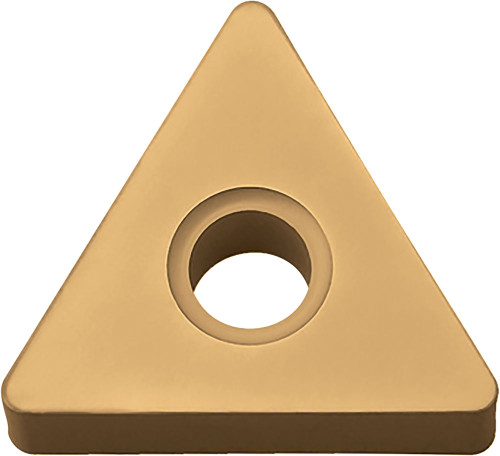

Kyocera Turning Insert TNMA332 PV720: TLD06096

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD06096
$14.22

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, triangle shape, negative rake, 6 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLD06096.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TNMA332PV720
Insert Style
TNMA
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
332
Insert Grade
PV720
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Coating Process
PVD
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
TNMA160408
IC Size (Fractional)
3/8
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
