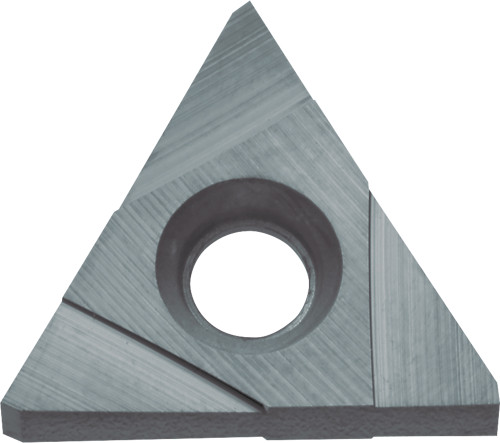

Kyocera TNMC 32NGR094 TN60 Grade Uncoated Cermet, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ89179
$46.62
Kyocera TNMC 32NGR094 TN60 Grade Uncoated Cermet, 0.0941" Groove Width, Right-Hand Grooving Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
STVP
Unit of Measure
Imperial
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.10
Grade
TN60
Cutting Width
0.09 Inch
Thickness (Metric)
3.18
Inscribed Circle (Metric)
9.53
Cutting Width (Metric)
2.39
Style
TNMC
Application
External Grooving
Chip Breaker Type
NG
Thickness (Fractional)
1/8
Insert Holding Method
Screw
Size
32
Old Material Number
8850185
ANSI Part Number
TNMC32NGR094TN60
ISO Part Number
TNMC32NGR094
Rake
Negative
Number of Cutting Edges
3
Hand of Holder
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.004
Cutting Width Minimum (Decimal)
0.09
Cutting Width Minimum (Metric)
2.39
Cutting Width Maximum (Decimal)
0.09
Cutting Width Maximum (Metric)
2.39
Max Depth of Cut (Decimal)
0.16
Max Depth of Cut (Metric)
3.97
Inscribed Circle (Fractional)
3/8
Pack quantity
10
