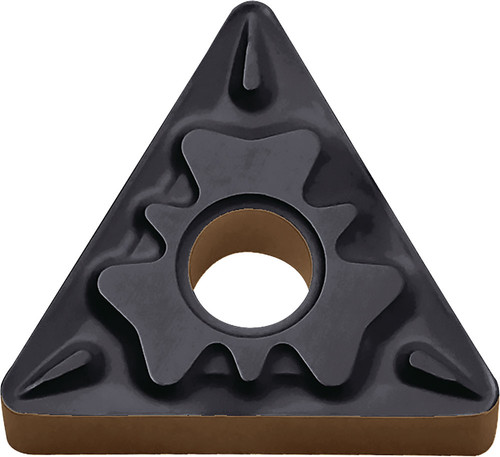

Kyocera TNMG 231HQ CA115P Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00216
$11.73
Kyocera TNMG 231HQ CA115P Grade CVD Carbide, 60 Degree Triangle, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TNMG231HQCA115P
Insert Style
TNMG
Insert Thickness (Metric)
4.76
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
231
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Grade
CA115P
Rake
Negative
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Workpiece Material
Steel
ISO Designation
TNMG110404HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
