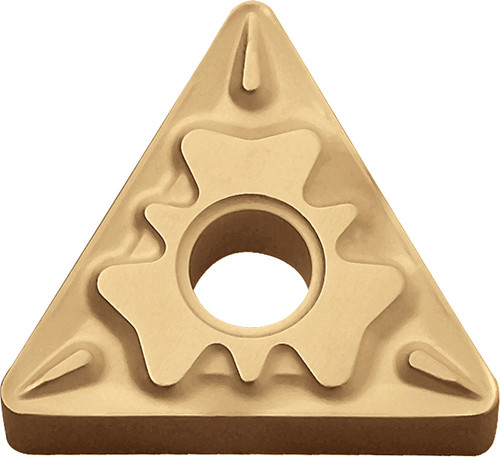

Kyocera Turning Insert TNMG232HQ CA515: TAB06021

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB06021
$11.73

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, triangle shape, negative rake, 6 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAB06021.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TNMG232HQCA515
Insert Style
TNMG
Insert Thickness (Metric)
4.76
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
232
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Grade
CA515
Rake
Negative
IC Size (Metric)
6.35
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Workpiece Material
Steel
ISO Designation
TNMG110408HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
