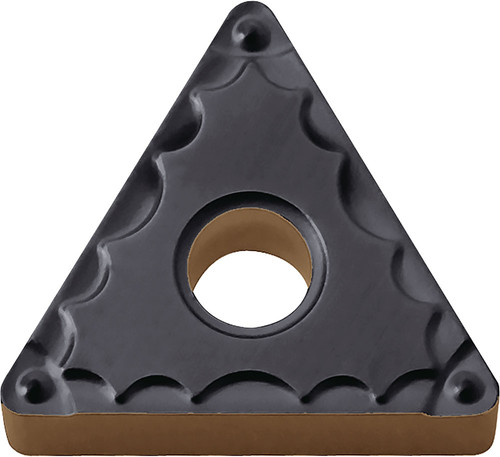

Kyocera Turning Insert TNMG3305GP CA115P: TML00213

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00213
$16.17

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, triangle shape, negative rake, 6 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TML00213.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Included Angle
60
Corner Radius (Decimal)
0.0080
Insert Style
TNMG
Insert Thickness (Metric)
4.76
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
3305
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Grade
CA115P
Rake
Negative
IC Size (Metric)
9.525
Corner Radius (Metric)
0.20
Number of Cutting Edges
6
Workpiece Material
Steel
ISO Designation
TNMG160402GP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
3/8
ANSI Designation
TNMG3305GPCA115P
Chip Breaker Type
GP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
Coating Process
CVD
