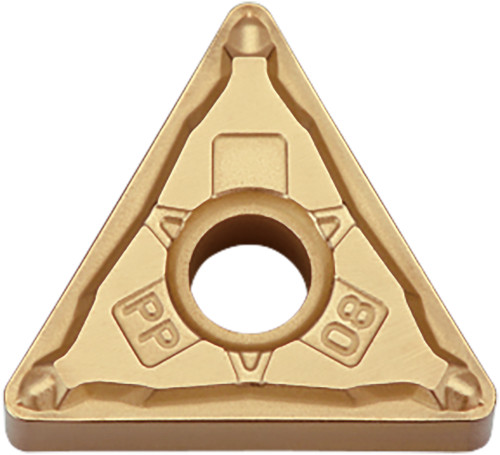

Kyocera Turning Insert TNMG3305PP CA025P: TMH00042

Kyocera Turning Insert TNMG3305PP CA025P, manufacturer part number TMH00042.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8860130; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 3305; Hand Direction: Neutral; Insert Style: TNMG; ANSI Designation: TNMG3305PPCA025P; Chip Breaker Type: PP; ISO Designation: TNMG160402PP; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: CA025P; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
