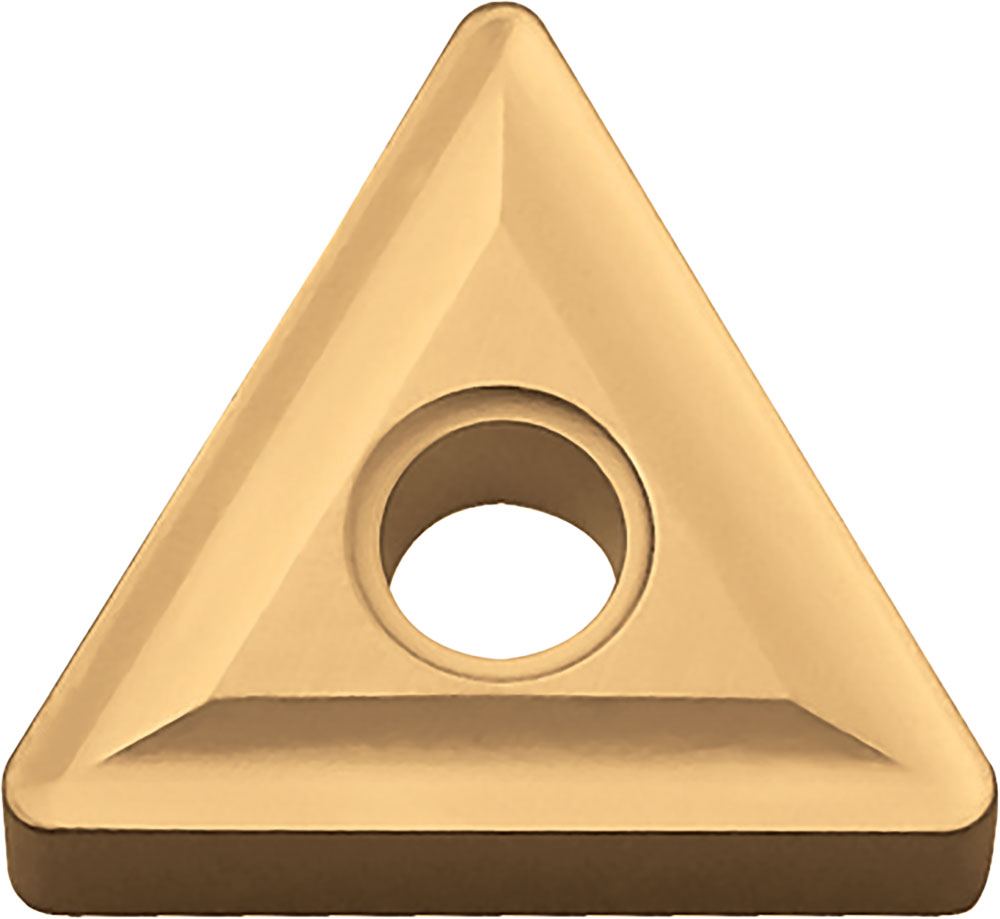

Kyocera Turning Insert TNMG331 CA525: TAC06100

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC06100
$16.17

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, triangle shape, negative rake, 6 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAC06100.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TNMG331CA525
Insert Style
TNMG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
331
Insert Grade
CA525
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Coating Process
CVD
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
TNMG160404
IC Size (Fractional)
3/8
Pack quantity
10
