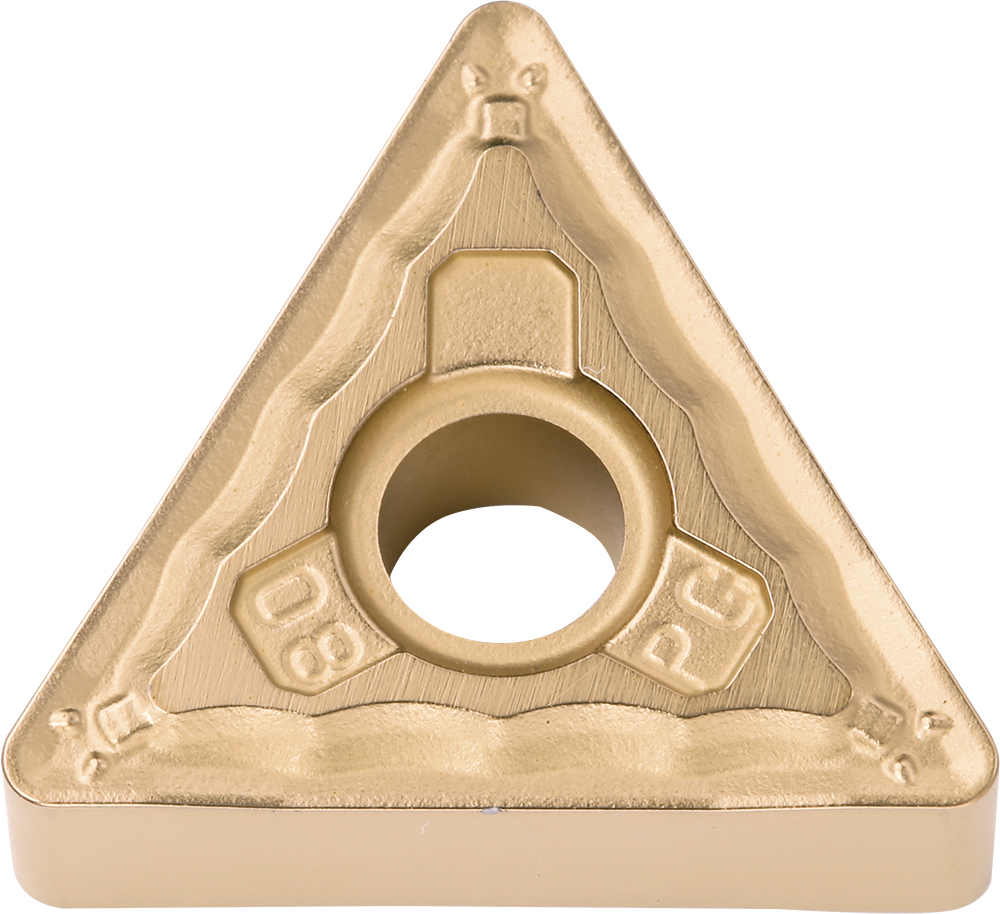

Kyocera Turning Insert TNMG331PG PV710: TLF06250

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLF06250
$16.02

Kyocera Turning Insert TNMG331PG PV710, manufacturer part number TLF06250.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8846891; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Medium-Roughing; Usage Classification: Continuous; Insert Size: 331; Hand Direction: Neutral; Insert Style: TNMG; ANSI Designation: TNMG331PGPV710; Chip Breaker Type: PG; ISO Designation: TNMG160404PG; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: PV710; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN (MEGACOAT NANO)
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/64
Included Angle
60
ANSI Designation
TNMG331PGPV710
Insert Style
TNMG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
331
Old Material Number
8846891
Insert Grade
PV710
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Coating Process
PVD
IC Size (Fractional)
3/8
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
PG
ISO Designation
TNMG160404PG
Pack quantity
10
