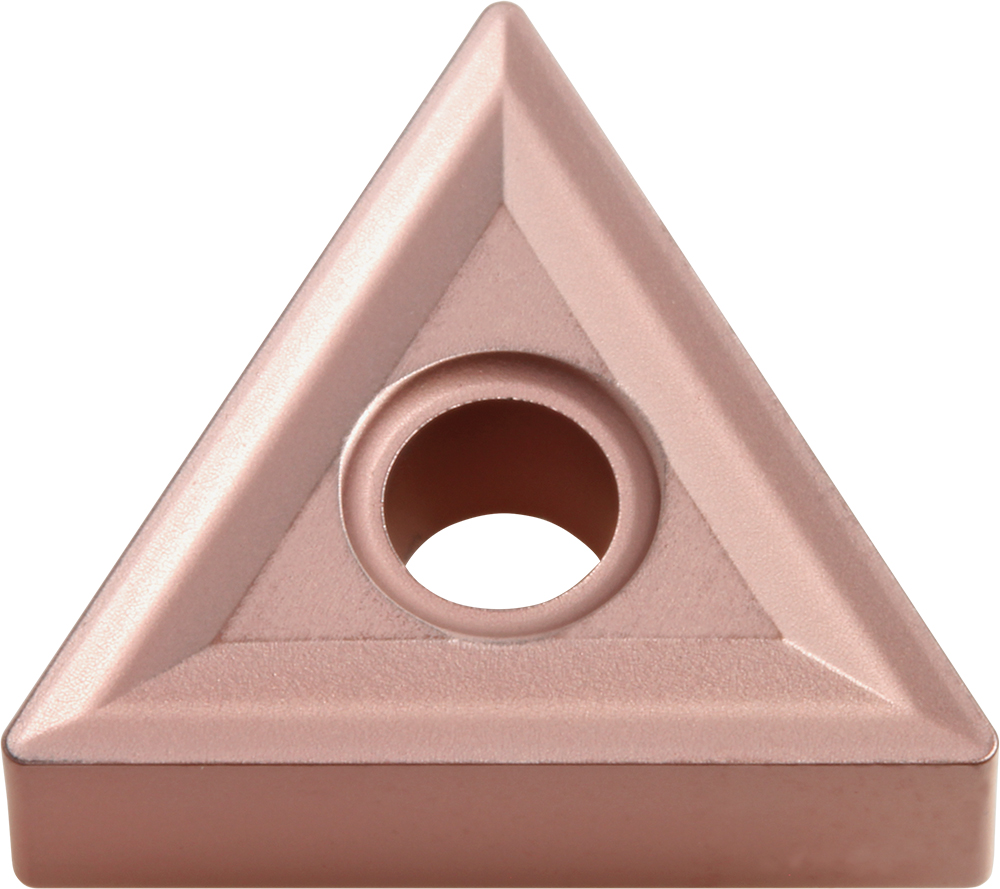

Kyocera Turning Insert TNMG332 CA530: TAD06101

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAD06101
$16.17

Kyocera Turning Insert TNMG332 CA530, manufacturer part number TAD06101.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8841062; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Roughing; Usage Classification: Continuous to Heavy Interruption; Insert Size: 332; Hand Direction: Neutral; Insert Style: TNMG; ANSI Designation: TNMG332CA530; ISO Designation: TNMG160408; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: CA530; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TNMG332CA530
Insert Style
TNMG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
332
Old Material Number
8841062
Insert Grade
CA530
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Coating Process
CVD
Cutting Range
Roughing
Usage Classification
Continuous to Heavy Interruption
IC Size (Metric)
9.525
ISO Designation
TNMG160408
IC Size (Fractional)
3/8
Pack quantity
10
