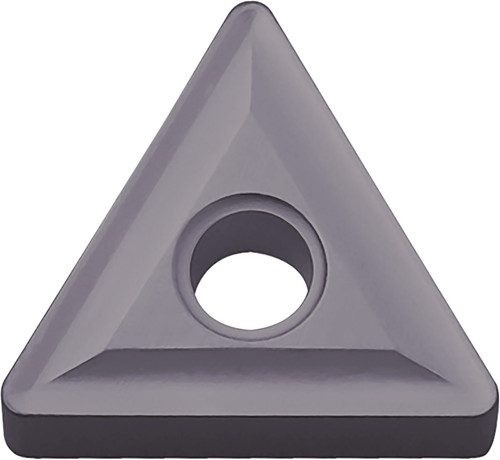

Kyocera Turning Insert TNMG332 PV7005: TJA06101

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJA06101
$16.81

Kyocera ISOI turning insert for cast iron, 3/8 in (9.525 mm) IC, triangle shape, negative rake, 6 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Cermet, MEGACOAT (PVD) coating. Manufacturer part number TJA06101.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
MEGACOAT
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TNMG332PV7005
Insert Style
TNMG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
332
Insert Grade
PV7005
Workpiece Material
Cast Iron
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Coating Process
PVD
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
TNMG160408
IC Size (Fractional)
3/8
Pack quantity
10
