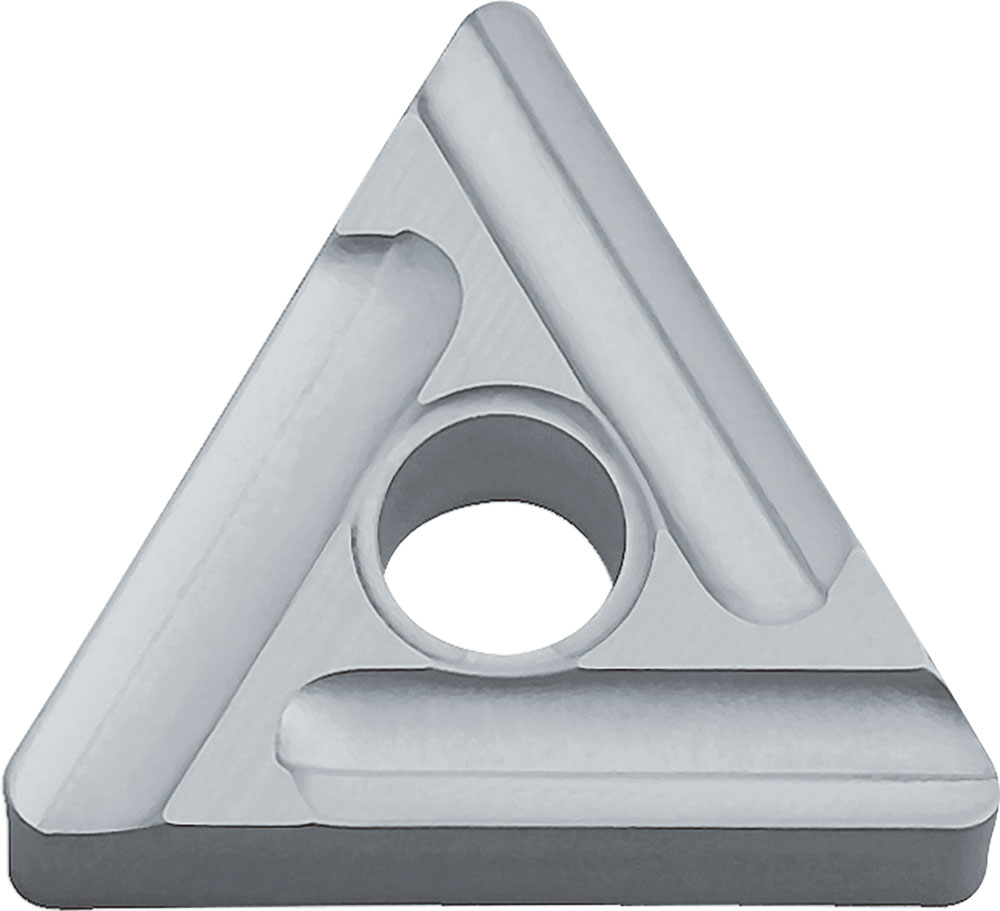

Kyocera Turning Insert TNMG332LST CA125P: TMK00250

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00250
$16.17

Kyocera Turning Insert TNMG332LST CA125P, manufacturer part number TMK00250.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Medium-Roughing; Usage Classification: Continuous to Light Interruption; Insert Size: 332; Hand Direction: Left; Insert Style: TNMG; ANSI Designation: TNMG332LSTCA125P; Chip Breaker Type: ST; ISO Designation: TNMG160408L-ST; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: CA125P; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TNMG332LSTCA125P
Insert Style
TNMG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
332
Insert Grade
CA125P
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
ST
ISO Designation
TNMG160408L-ST
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
