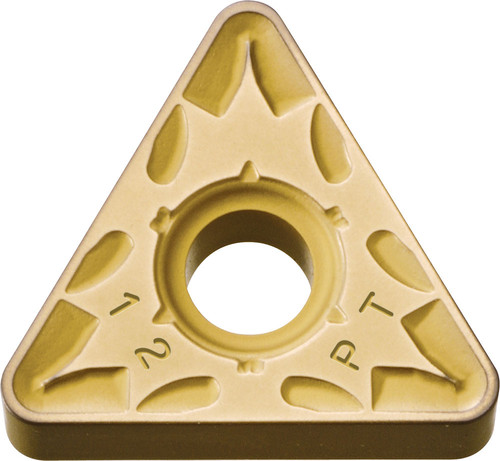

Kyocera Turning Insert TNMG332PT CA515: TAB06262

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB06262
$16.17

Kyocera ISOI turning insert for steel, 3/8 in (9.525 mm) IC, triangle shape, negative rake, 6 cutting edges, medium-roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAB06262.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
4.76
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TNMG332PTCA515
Insert Style
TNMG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
332
Insert Grade
CA515
Workpiece Material
Steel
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Metric)
9.525
Chip Breaker Type
PT
ISO Designation
TNMG160408PT
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
