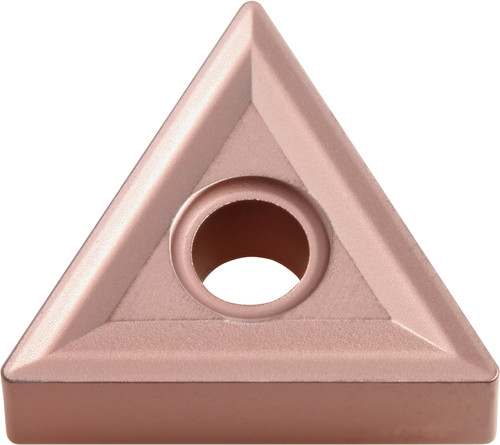

Kyocera Turning Insert TNMG333 CA315: TMD06102

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMD06102
$16.17

Kyocera Turning Insert TNMG333 CA315, manufacturer part number TMD06102.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8848468; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Roughing; Usage Classification: Continuous to Light Interruption; Insert Size: 333; Hand Direction: Neutral; Insert Style: TNMG; ANSI Designation: TNMG333CA315; ISO Designation: TNMG160412; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: CA315; Workpiece Material: Cast Iron; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/Ti. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
60
ANSI Designation
TNMG333CA315
Insert Style
TNMG
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
333
Old Material Number
8848468
Insert Grade
CA315
Workpiece Material
Cast Iron
Rake
Negative
Insert Thickness (Metric)
4.76
Corner Radius (Metric)
1.20
Number of Cutting Edges
6
Coating Process
CVD
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
ISO Designation
TNMG160412
IC Size (Fractional)
3/8
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
Kyocera Turning Insert TNMG333 CA315: TMD06102
$16.17
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
