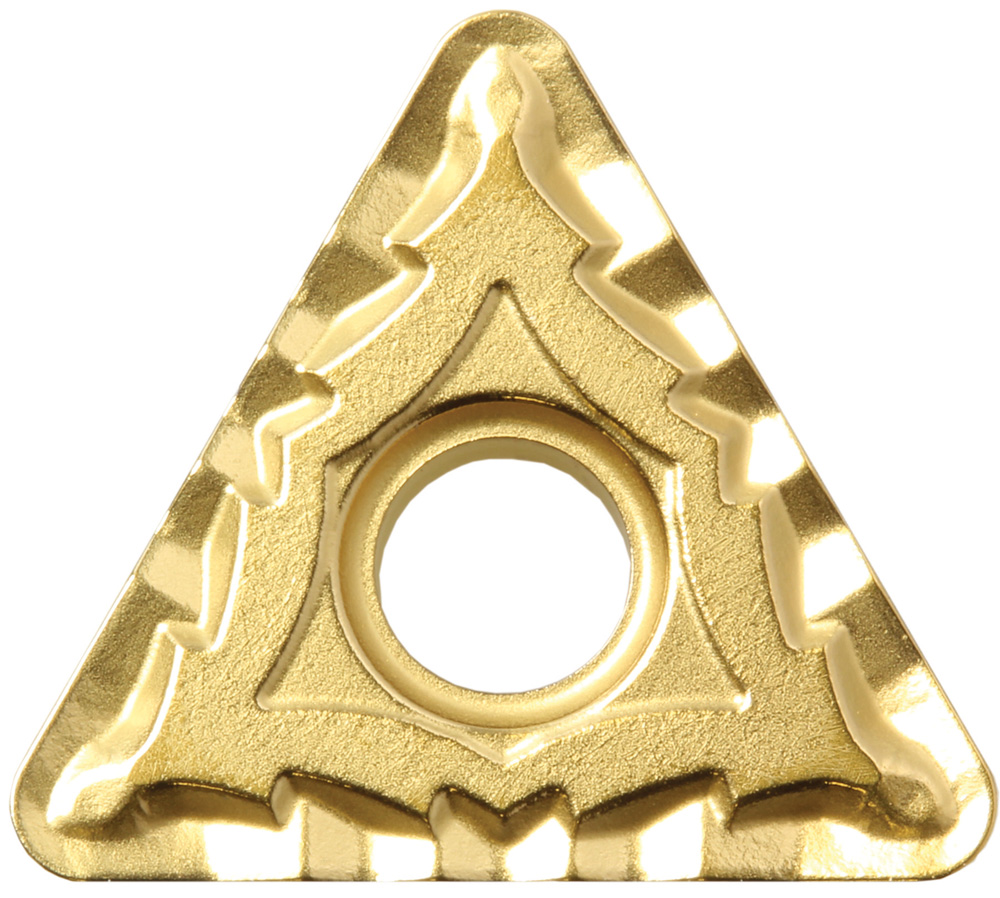

Kyocera TNMG 333CQ CA525 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC06112
$16.17
Kyocera TNMG 333CQ CA525 Grade CVD Carbide, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
3/64 Inch
Included Angle
60 degrees
Thickness
3/16 Inch
Style
TNMG
Application
Boring, Chamfering, Copying, External Turning, Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
333
Old Material Number
8841129
ANSI Part Number
TNMG333CQCA525
ISO Part Number
TNMG160412CQ
Rake
Negative
Material Group / Grade
CA525
Corner Radius (Metric)
1.20
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
CQ
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
