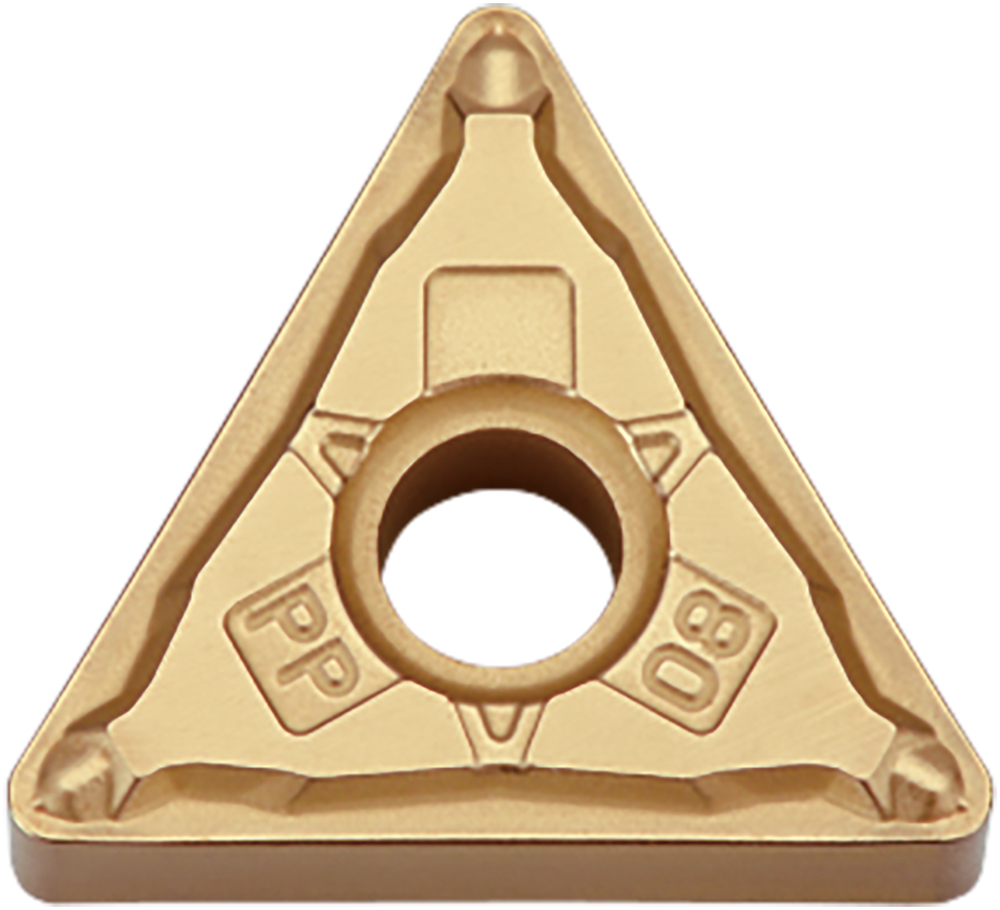

Kyocera Turning Insert TNMG333PP CCX: TMJ00068
SKU: KYP-TMJ00068
Kyocera Turning Insert TNMG333PP CA525, manufacturer part number TAC06245.
Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8841145; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 333; Hand Direction: Neutral; Insert Style: TNMG; ANSI Designation: TNMG333PPCA525; Chip Breaker Type: PP; ISO Designation: TNMG160412PP; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: CA525; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.
Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.
