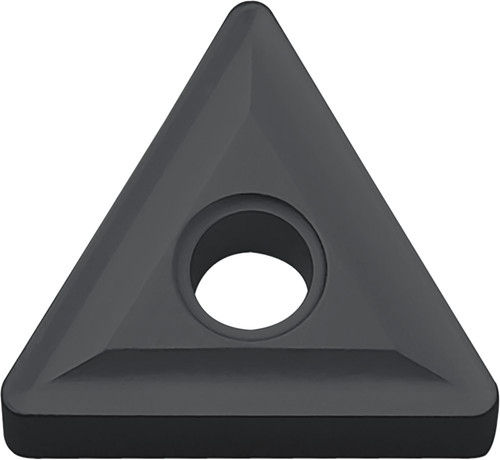

Kyocera Turning Insert TNMG334 CA4515: TJH06103

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJH06103
$16.17

Kyocera Turning Insert TNMG334 CA4515, order reference TJH06103.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/16 in (1.60 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8831423; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Roughing; Usage Classification: Heavy Interruption; Insert Size: 334; Hand Direction: Neutral; Insert Style: TNMG; ANSI Designation: TNMG334CA4515; ISO Designation: TNMG160416; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: CA4515; Workpiece Material: Cast Iron; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/16
Included Angle
60
ANSI Designation
TNMG334CA4515
Insert Style
TNMG
Insert Grade
CA4515
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
334
Old Material Number
8831423
Workpiece Material
Cast Iron
Coating Process
CVD
Rake
Negative
Insert Thickness (Metric)
4.76
Corner Radius (Metric)
1.60
Number of Cutting Edges
6
Cutting Range
Roughing
Usage Classification
Heavy Interruption
IC Size (Metric)
9.525
ISO Designation
TNMG160416
IC Size (Fractional)
3/8
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA45-Series-8pg-Brochure.pdf
