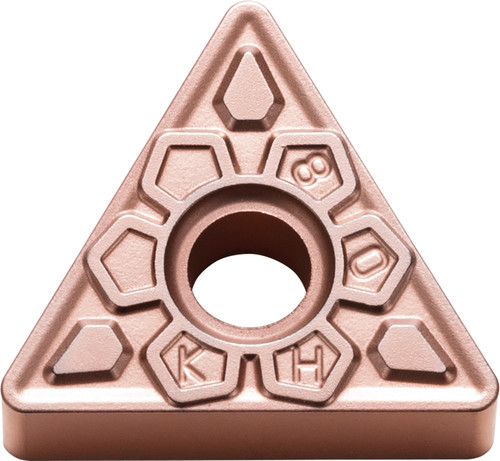

Kyocera Turning Insert TNMG334KH CA320: TME06383

Kyocera Turning Insert TNMG334KH CA320, manufacturer part number TME06383.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/16 in (1.60 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8848873; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Medium-Roughing; Usage Classification: Continuous to Heavy Interruption; Insert Size: 334; Hand Direction: Neutral; Insert Style: TNMG; ANSI Designation: TNMG334KHCA320; Chip Breaker Type: KH; ISO Designation: TNMG160416KH; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: CA320; Workpiece Material: Cast Iron; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/Ti. Series: ISOI. Unit of measure: Inch.
