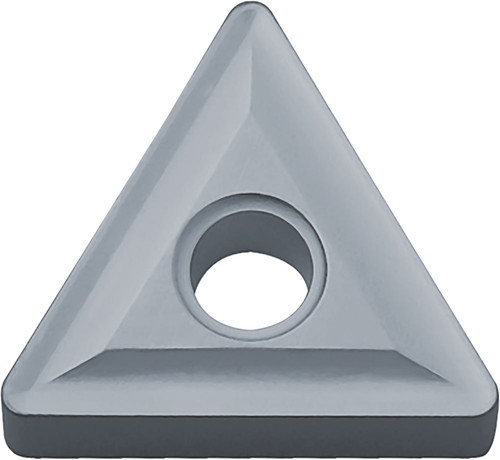

Kyocera Turning Insert TNMG433 TN60: TSJ02200

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ02200
$16.68

Kyocera Turning Insert TNMG433 TN60, manufacturer part number TSJ02200.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8814791; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Roughing; Usage Classification: Continuous; Insert Size: 433; Hand Direction: Neutral; Insert Style: TNMG; ANSI Designation: TNMG433TN60; ISO Designation: TNMG220412; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: TN60; Workpiece Material: Steel; Insert Shape: Triangle.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
60
ANSI Designation
TNMG433TN60
Insert Style
TNMG
Insert Thickness (Metric)
4.76
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
433
Old Material Number
8814791
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Grade
TN60
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.20
Number of Cutting Edges
6
Workpiece Material
Steel
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
ISO Designation
TNMG220412
Pack quantity
10
