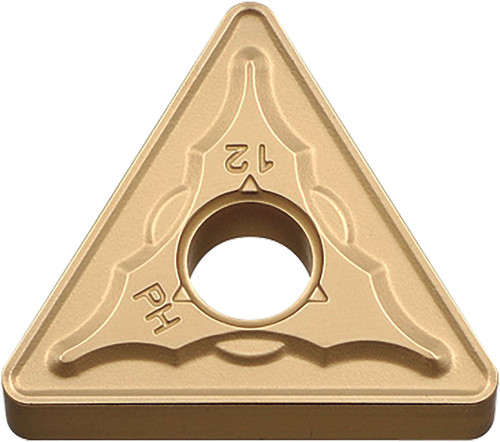

Kyocera Turning Insert TNMG434PH CA025P: TMH00294

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMH00294
$19.81

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, triangle shape, negative rake, 6 cutting edges, medium-roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMH00294.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/16
Included Angle
60
ANSI Designation
TNMG434PHCA025P
Insert Style
TNMG
Insert Thickness (Metric)
4.76
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
434
Machining Operations
Boring, Chamfering, Copying, External Turning, Facing
Insert Grade
CA025P
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.60
Number of Cutting Edges
6
Workpiece Material
Steel
ISO Designation
TNMG220416PH
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
PH
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA025P_CVD_Coated_Carbide_for_Steel.pdf
