Kyocera Turning Insert TNMX332WF CA125P: TMK00211
SKU: KYP-TMK00211

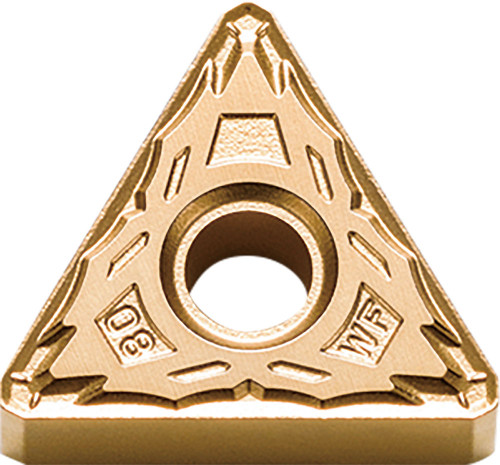

Kyocera Turning Insert TNMX332WF PV710, manufacturer part number TLF06601.
Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8849252; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Finishing; Usage Classification: Continuous; Insert Size: 332; Hand Direction: Neutral; Insert Style: TNMX; ANSI Designation: TNMX332WFPV710; Chip Breaker Type: WF; ISO Designation: TNMX160408WF; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, Copying, External Turning, Facing; Insert Grade: PV710; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: PVD.
Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.
