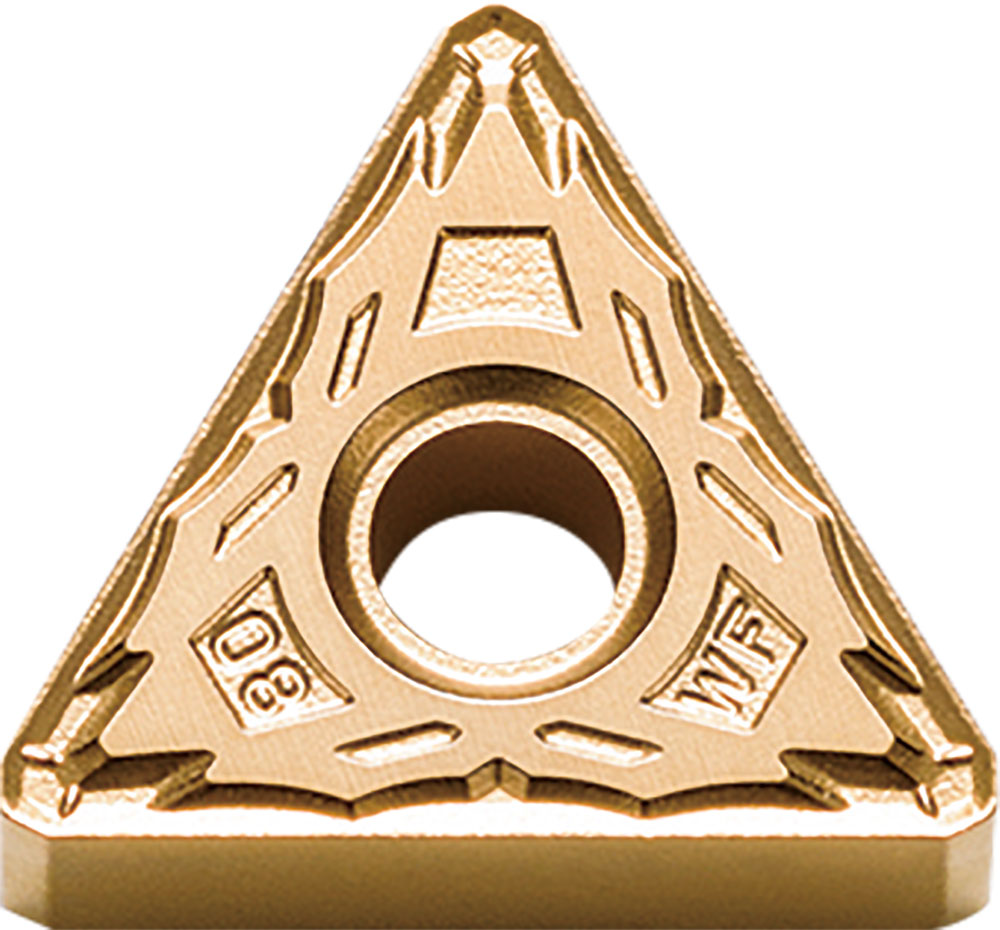

Kyocera TNMX 333WF TN610 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS06602
$13.56
Kyocera TNMX 333WF TN610 Grade Uncoated Cermet, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
3/64 Inch
Included Angle
60 degrees
Thickness
3/16 Inch
Style
TNMX
Application
Boring, Chamfering, Copying, External Turning, Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
333
Old Material Number
8849316
ANSI Part Number
TNMX333WFTN610
ISO Part Number
TNMX160412WF
Rake
Negative
Material Group / Grade
TN610
Corner Radius (Metric)
1.20
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
WF
Cutting Range
Finishing
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/WE_WF_Chipbreaker.pdf
