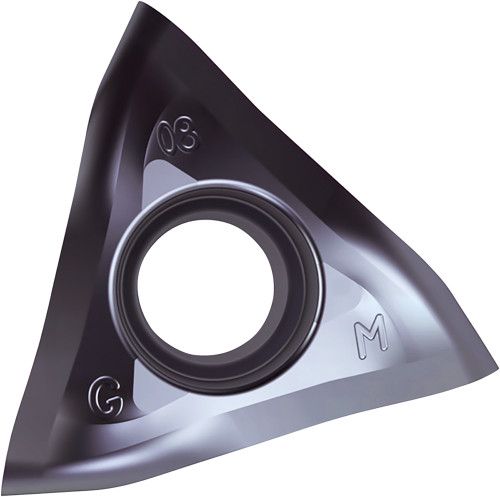

Kyocera TOMT 060504ERGM PR1510 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLA40008
$30.44
Kyocera TOMT 060504ERGM PR1510 Grade PVD Carbide, 60 Degree Triangle, Positive Rake Angle, Right-Hand Milling insert for Roughing in (K) Gray Cast Iron|(K) Nodular Cast Iron and (S) Titanium Alloy

Specifications

Series
MEV
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
0.40 mm
Corner Radius (Fractional)
1/64
Grade
PR1510
Inscribed Circle (Metric)
7.20
Thickness
5.70 mm
Style
TOMT
Application
Contouring, Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Decimal)
0.22
Shape
60 Degree Triangle
Insert Holding Method
Screw
Old Material Number
8866388
ANSI Part Number
TOMT060504ERGMPR1510
ISO Part Number
TOMT060504ER-GM
Rake
Positive
Number of Cutting Edges
3
Insert Size
060504
Chipbreaker
ER-GM
Cutting Range
Roughing
Insert Included Angle (Degree)
60 degrees
Inscribed Circle (Decimal)
0.28
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEV_High_Performance_Milling.pdf
