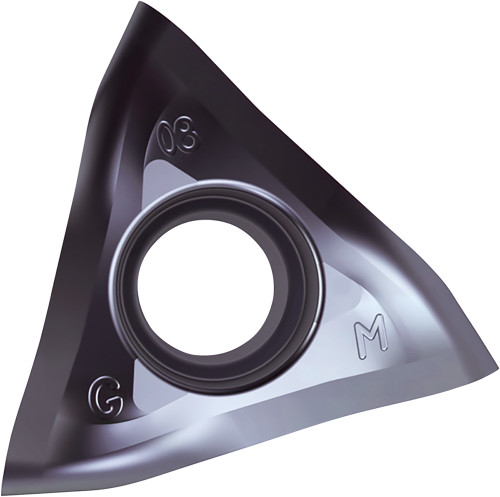

Kyocera TOMT 060508ERGM PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC40005
$30.44
Kyocera TOMT 060508ERGM PR1535 Grade PVD Carbide, Triangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (M) Precipitation Hardened Stainless Steel and (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Austenitic Stainless Steel, (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy, (S) Titanium Alloy

Specifications

Series
MEV
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Precipitation Hardened Stainless Steel
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1535
Inscribed Circle (Metric)
7.20
Thickness
5.70 mm
Style
TOMT
Application
Contouring, Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting
Thickness (Decimal)
0.22
Shape
60 Degree Triangle
Insert Holding Method
Screw
Old Material Number
8864758
ANSI Part Number
TOMT060508ERGMPR1535
ISO Part Number
TOMT060508ER-GM
Rake
Positive
Number of Cutting Edges
3
Insert Size
060508
Chipbreaker
ER-GM
Cutting Range
Roughing
Insert Included Angle (Degree)
60 degrees
Inscribed Circle (Decimal)
0.28
Pack quantity
10
