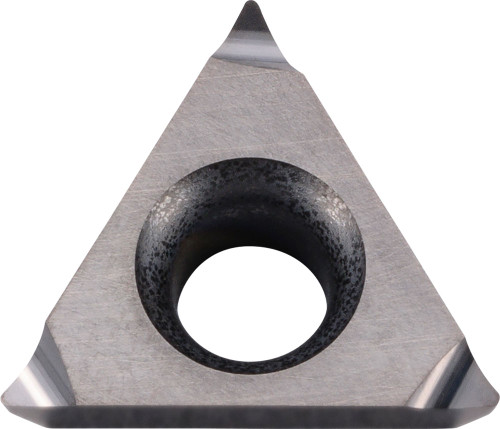

Kyocera Turning Insert TPEH151502MLP PR1535: TLC58731

Kyocera Turning Insert TPEH151502MLP PR1535, manufacturer part number TLC58731.

Specifications: IC Size: 3/16 in (4.76 mm); Insert Thickness: 3/32 in (2.38 mm); Corner Radius: 0.0040 in (0.10 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8861031; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 151502; Hand Direction: Left; Insert Style: TPEH; ANSI Designation: TPEH151502MLPPR1535; Chip Breaker Type: P; ISO Designation: TPEH080201ML-P; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: PR1535; Workpiece Material: Stainless Steel, High-Temp Alloy; Insert Shape: Triangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO. Series: ISOI. Unit of measure: Inch.
