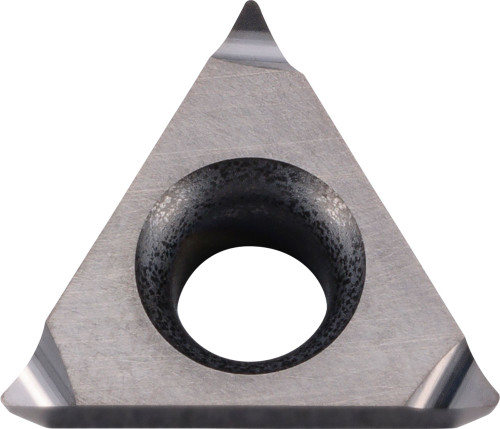

Kyocera Turning Insert TPEH151505MLP PR1725: TLM00488

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM00488
$33.28

Kyocera ISOI turning insert for steel, 3/16 in (4.76 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing cutting range, screw or clamp insert holding, left hand. Carbide, MEGACOAT NANO PLUS (PVD) coating. Manufacturer part number TLM00488.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Left
Material
Carbide
Coating/Finish
MEGACOAT NANO PLUS
IC Size (Metric)
4.76
Included Angle
60
Corner Radius (Decimal)
0.0080
Insert Style
TPEH
Insert Thickness (Fractional)
3/32
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
151505
Secondary Workpiece Material
Stainless Steel
Insert Thickness (Metric)
2.38
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Rake
Positive
IC Size (Fractional)
3/16
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Insert Grade
PR1725
Chip Breaker Type
P
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
TPEH080202ML-P
Workpiece Material
Steel
ANSI Designation
TPEH151505MLPPR1725
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/P_Chipbreaker_for_Boring.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Coating Process
PVD
