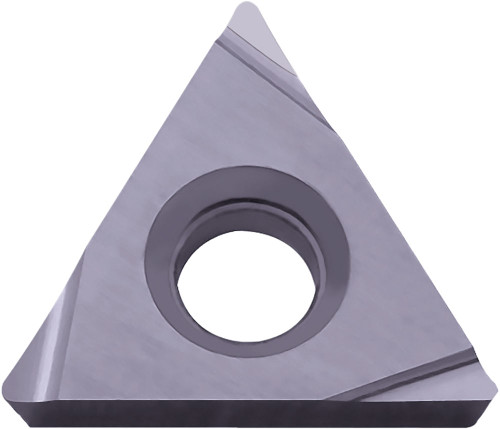

Kyocera TPET 2201FSF PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM40242
$36.20
Kyocera TPET 2201FSF PR1725 Grade PVD Carbide, 11 Degree, Triangle, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TPET
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
2201
Old Material Number
8866395
ANSI Part Number
TPET22013MLFSFPR1725
ISO Part Number
TPET1103005ML-FSF
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.03
Number of Cutting Edges
3
Thickness (Metric)
3.18
Chipbreaker
FSF
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PR1725_PR1705.pdf
