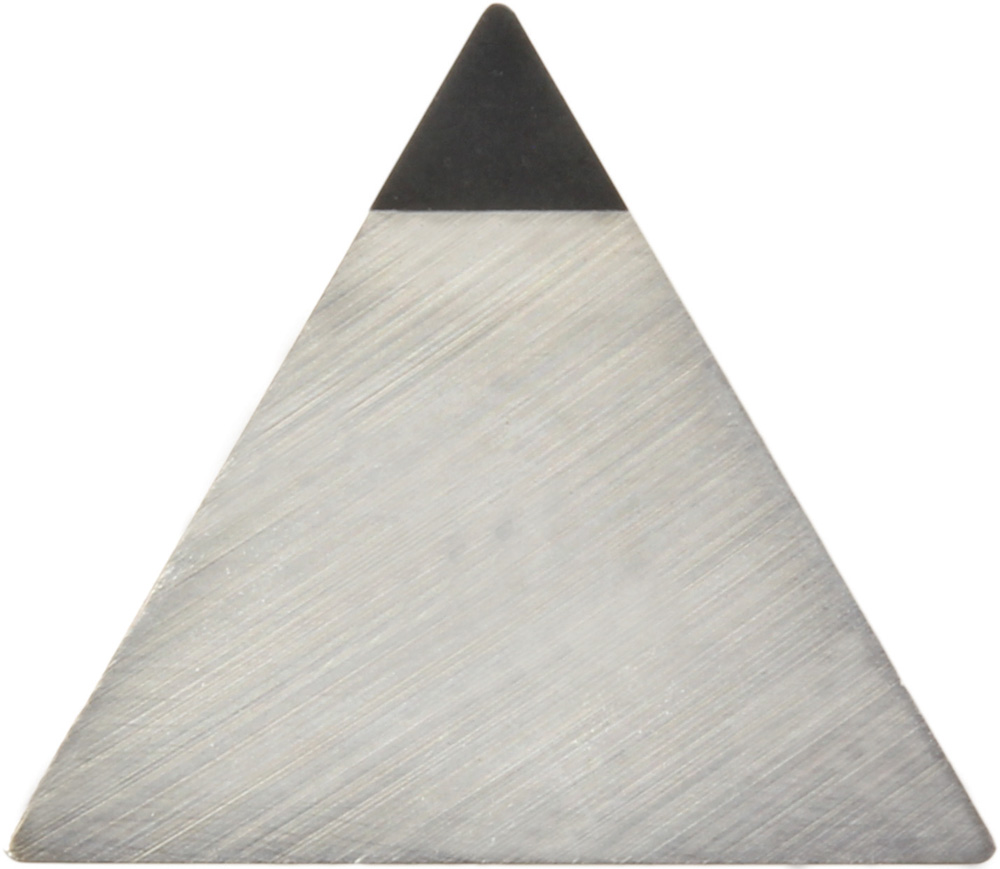

Kyocera TPG 3205SE KPD010 Grade PCD, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBE02902
$64.57
Kyocera TPG 3205SE KPD010 Grade PCD, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TPG
Application
Boring, Chamfering, External Turning, Facing
Shape
60 Degree Triangle
Insert Holding Method
Clamp
Size
3205
Old Material Number
8815120
ANSI Part Number
TPG3205SEKPD010
ISO Part Number
TPGN160302SE
Rake
Positive
Material Group / Grade
KPD010
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Thickness (Metric)
3.18
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Kyocera TPG 3205SE KPD010 Grade PCD, Indexable Turning Insert
$64.57
