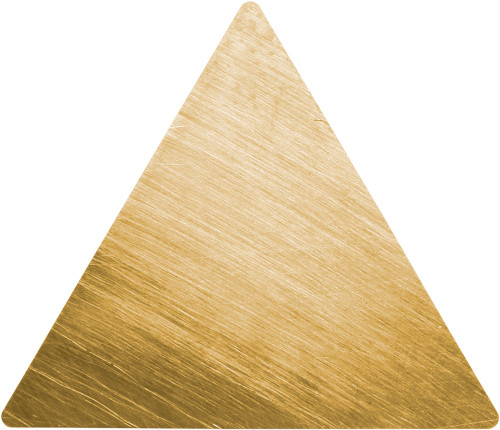

Kyocera Turning Insert TPG322 PV710: TLF06937

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLF06937
$21.70

Kyocera Turning Insert TPG322 PV710, manufacturer part number TLF06937.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Clamp; Old Material Number: 8847678; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Medium; Usage Classification: Continuous; Insert Size: 322; Hand Direction: Neutral; Insert Style: TPG; ANSI Designation: TPG322PV710; ISO Designation: TPGN160308; Included Angle: 60 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: PV710; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN (MEGACOAT NANO)
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPG322PV710
Insert Style
TPG
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Shape
Triangle
Insert Holding Method
Clamp
Insert Size
322
Old Material Number
8847678
Insert Grade
PV710
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Coating Process
PVD
Cutting Range
Medium
Usage Classification
Continuous
IC Size (Metric)
9.525
ISO Designation
TPGN160308
IC Size (Fractional)
3/8
Pack quantity
10
