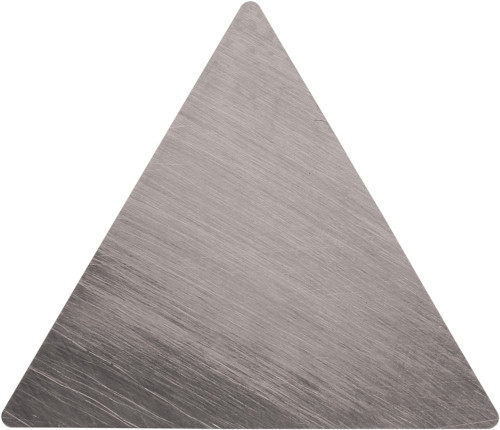

Kyocera TPG 324 TN60 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ89208
$18.94
Kyocera TPG 324 TN60 Grade Uncoated Cermet, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/16 Inch
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TPG
Application
Boring, Chamfering, External Turning, Facing
Shape
60 Degree Triangle
Insert Holding Method
Clamp
Size
324
Old Material Number
8850224
ANSI Part Number
TPG324TN60
ISO Part Number
TPG324
Rake
Positive
Material Group / Grade
TN60
Corner Radius (Metric)
1.60
Number of Cutting Edges
3
Thickness (Metric)
3.18
Cutting Range
Medium
Usage Classification
Continuous
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
Kyocera TPG 324 TN60 Grade Uncoated Cermet, Indexable Turning Insert
$18.94
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
