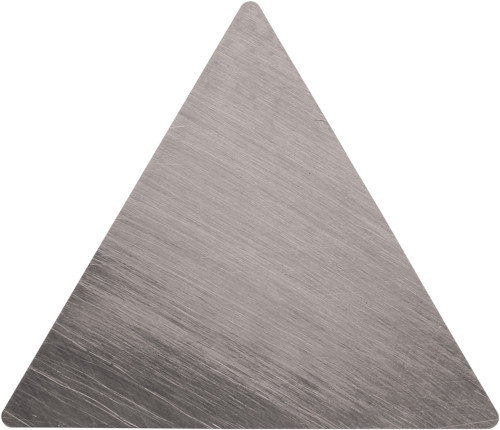

Kyocera TPG 433 TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8864090
$22.63
Kyocera TPG 433 TN620 Grade Uncoated Cermet, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
3/64 Inch
Included Angle
60 degrees
Thickness
3/16 Inch
Style
TPG
Application
Boring, Chamfering, External Turning, Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
433
Old Material Number
8864090
ANSI Part Number
TPG433TN620
ISO Part Number
TPG433
Rake
Positive
Material Group / Grade
TN620
Corner Radius (Metric)
1.20
Number of Cutting Edges
3
Thickness (Metric)
4.76
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera TPG 433 TN620 Grade Uncoated Cermet, Indexable Turning Insert
$22.63
