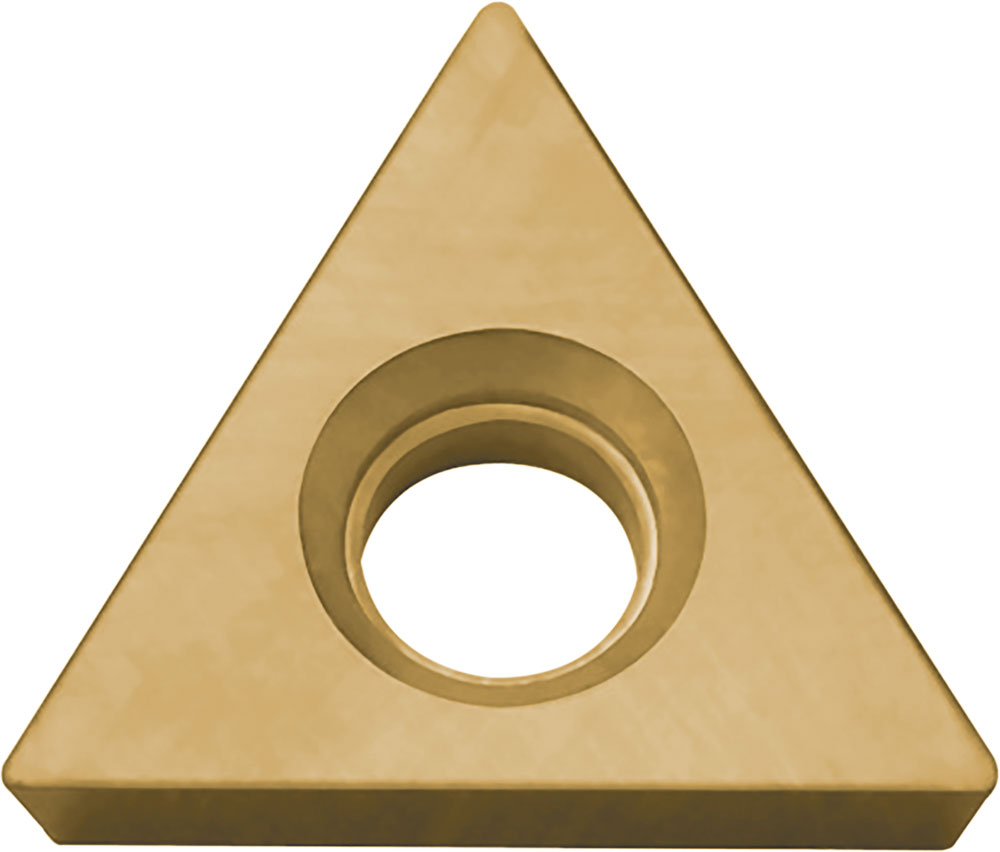

Kyocera TPGB 2205 PV720 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD06749
$20.28
Kyocera TPGB 2205 PV720 Grade PVD Cermet, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Included Angle
60 degrees
Thickness
1/8 Inch
Style
TPGB
Application
Back Boring, Boring, Copying, External Turning, Internal Facing
Shape
60 Degree Triangle
Insert Holding Method
Screw or Clamp
Size
2205
Old Material Number
8843284
ANSI Part Number
TPGB2205PV720
ISO Part Number
TPGB110302
Rake
Positive
Material Group / Grade
PV720
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Thickness (Metric)
3.18
Cutting Range
Medium
Usage Classification
Light Interruption
Insert Included Angle
60 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
