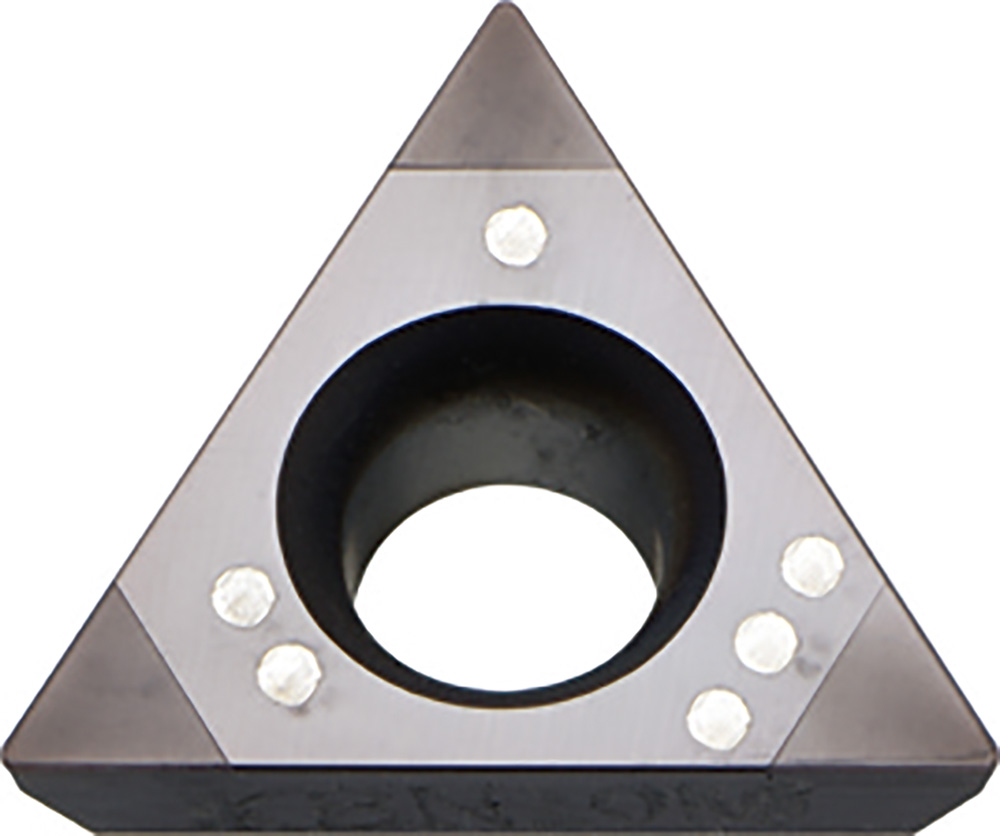

Kyocera Turning Insert TPGB222T00315ME KBN020: TFC00040

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TFC00040
$127.89

Kyocera Turning Insert TPGB222T00315ME KBN020, manufacturer part number TFC00040.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/32 in (0.80 mm); Insert Holding Method: Screw or Clamp; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 222; Hand Direction: Neutral; Insert Style: TPGB; ANSI Designation: TPGB222T00315MEKBN020; ISO Designation: TPGB110308T00815ME; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: KBN020; Workpiece Material: Hardened Steel; Insert Shape: Triangle; Coating Process: PVD.

Material: CBN. Coating/Finish: MEGACOAT TOUGH. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
CBN
Coating/Finish
MEGACOAT TOUGH
Insert Thickness (Fractional)
1/8
Corner Radius (Fractional)
1/32
Included Angle
60
ANSI Designation
TPGB222T00315MEKBN020
Insert Style
TPGB
Insert Thickness (Metric)
3.18
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
222
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Insert Grade
KBN020
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Workpiece Material
Hardened Steel
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/4
Coating Process
PVD
ISO Designation
TPGB110308T00815ME
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KBN020_Coated_CBN_for_Hardened_Material.pdf
